- Fan Speed: 230 - 1350 rpm
- Airflow: 53 CFM/ 90.1 m³/h
- Static Pressure: 1 mm H₂O
- Noise Level: 0.3 Sone
Fan Frame: Standard
Control Type: PWM
Connector: 4-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C
Warranty: 6 Years
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.12 A / 12 V
Cable Length: 400 mm
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 105 g

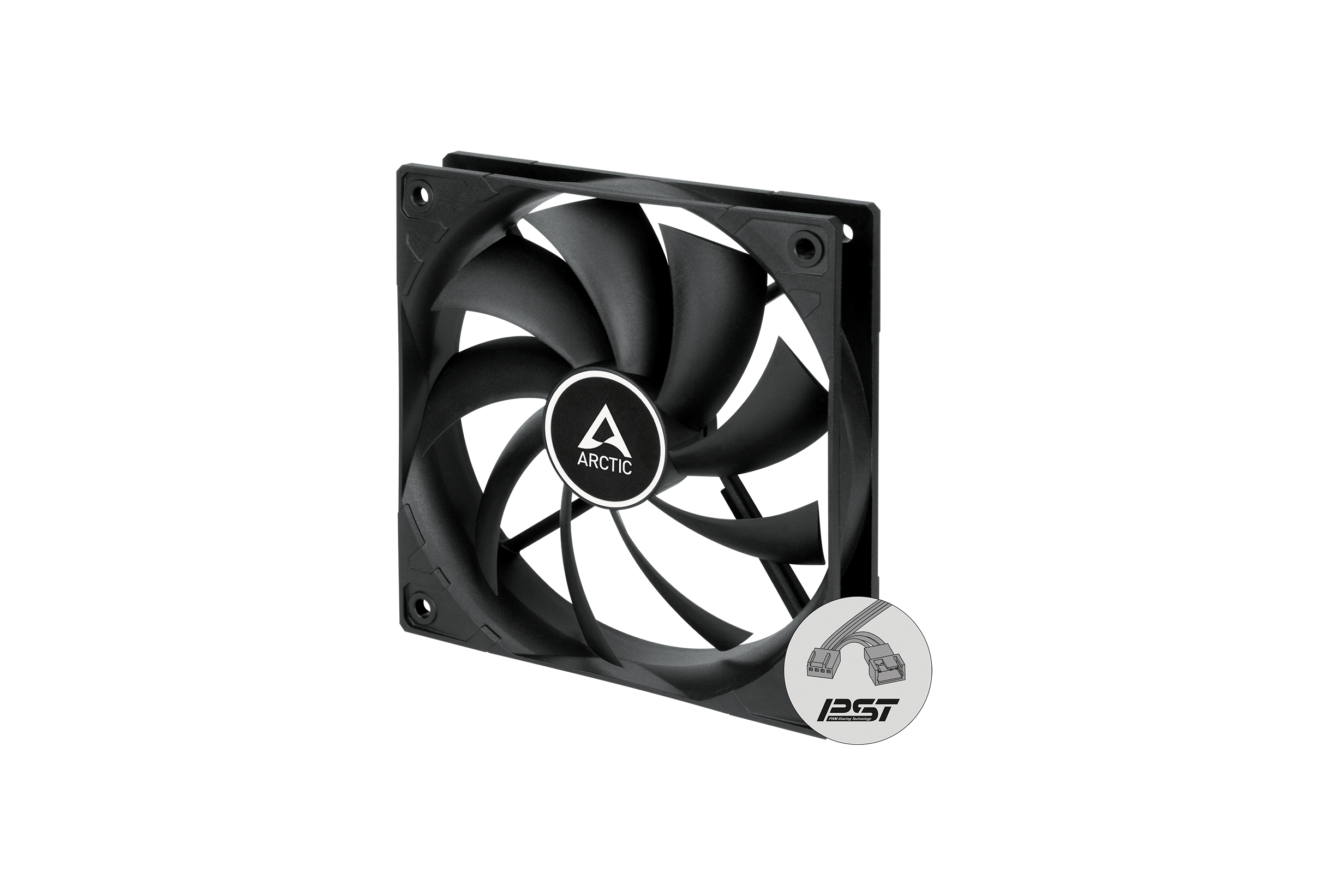

Arctic F12 PWM Fan (Black)
Product Info
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Warranty
6 Years Warranty
