- Fan Speed: 200 - 1800 rpm
- Airflow: 56.3 CFM/ 95.65 m³/h
- Static Pressure: 2.20 mm H₂O
- Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Warranty: 6 years
Fan Frame: Standard
Control Type: PWM
Connector: 4-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current/ Voltage: 0.1 A / 12 V
Cable Length: 400 mm
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g

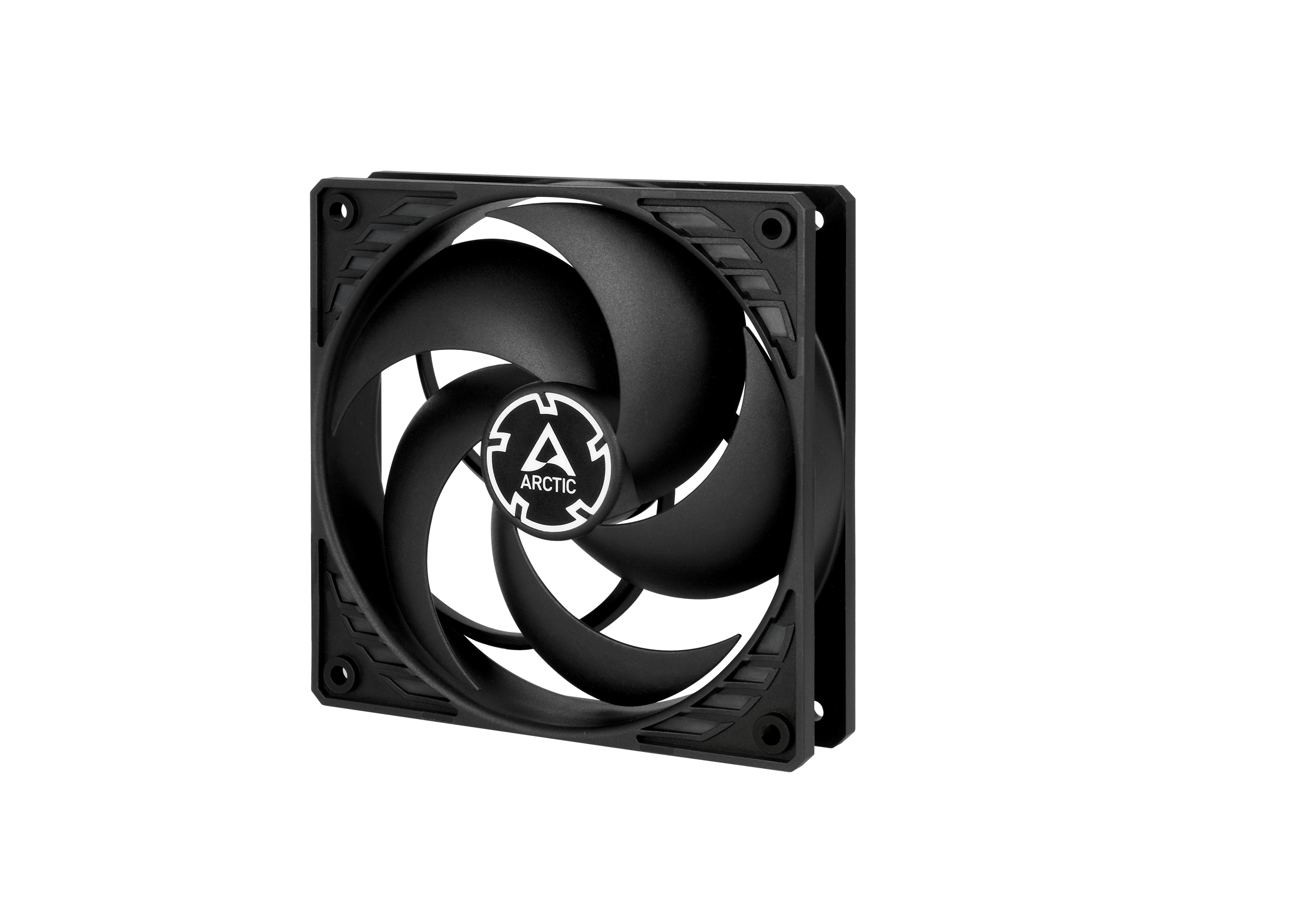

Arctic P12 PWM Fan (Black)
Product Info
During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy without compromising the performance.
Warranty
6 Years Warranty
